https://github.com/zhelnio/schoolRISCV
Stanislav Zhelnio, 2020
аппаратная реализация архитектуры в виде схемы
возможны разные реализации одной архитектуры:
...и этого уже достаточно, чтобы посчитать квадратный корень!

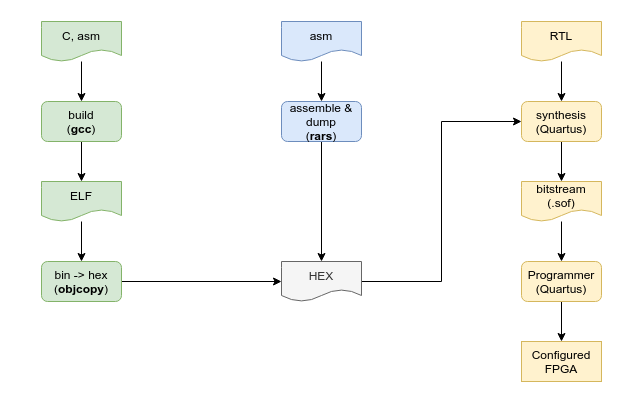

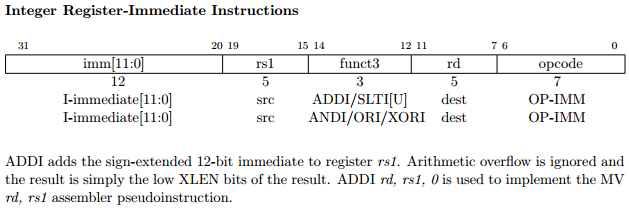

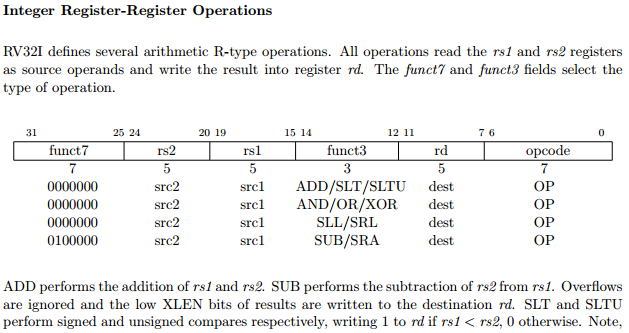

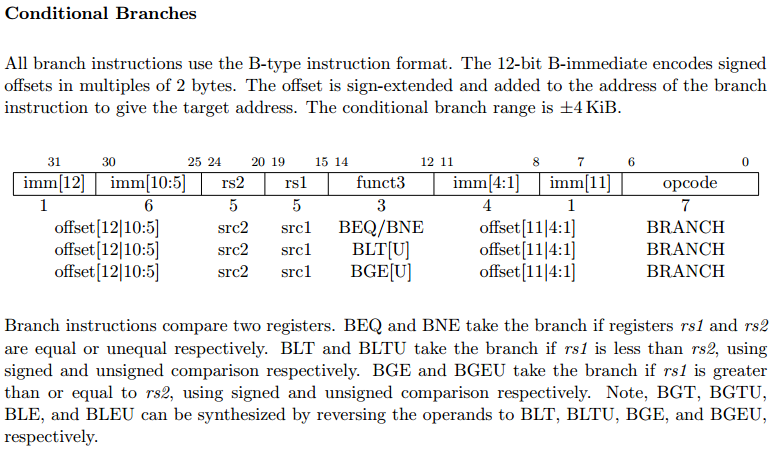

https://riscv.org/specifications/

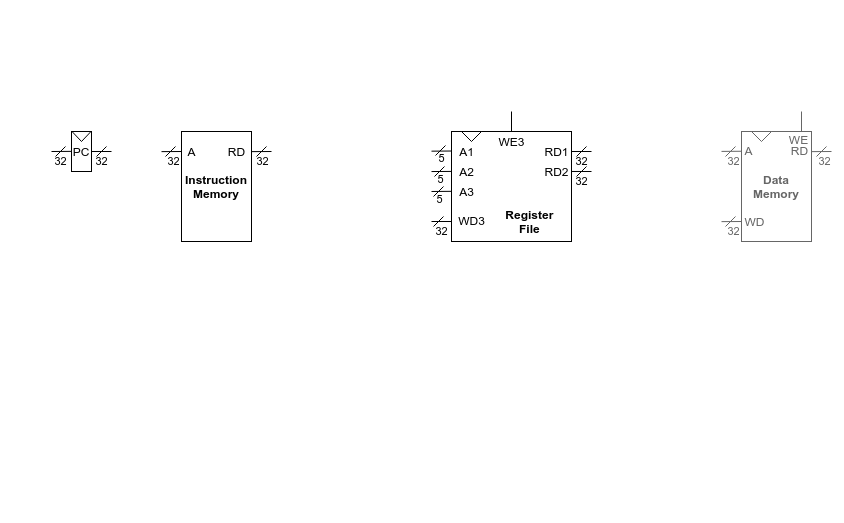

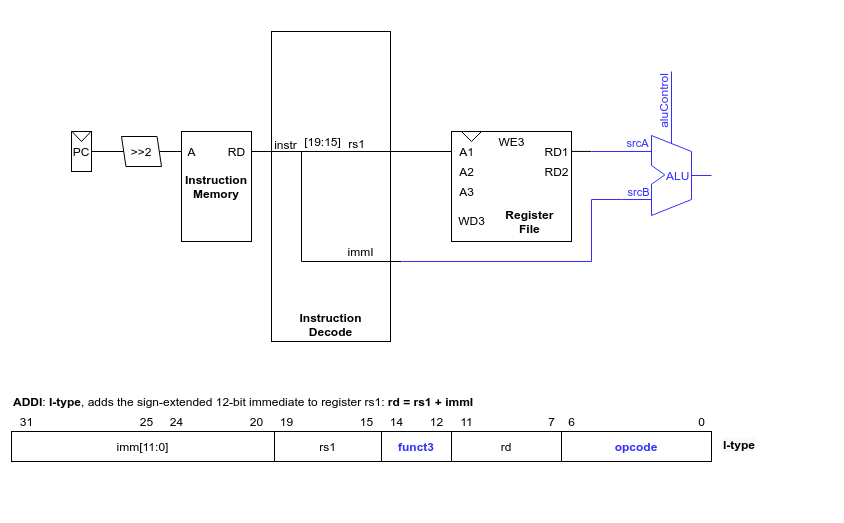

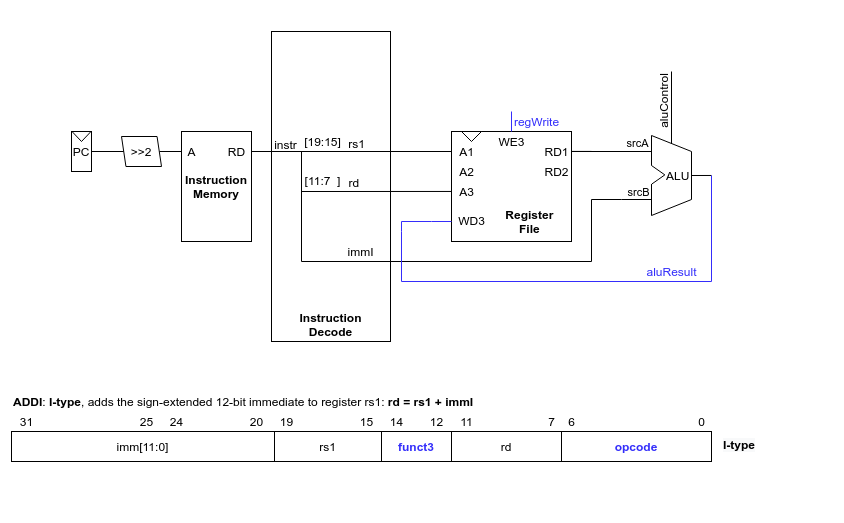

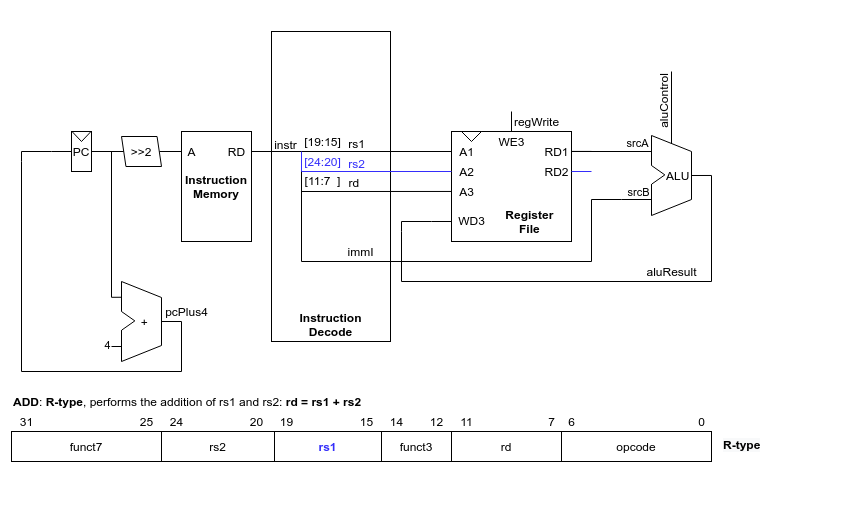

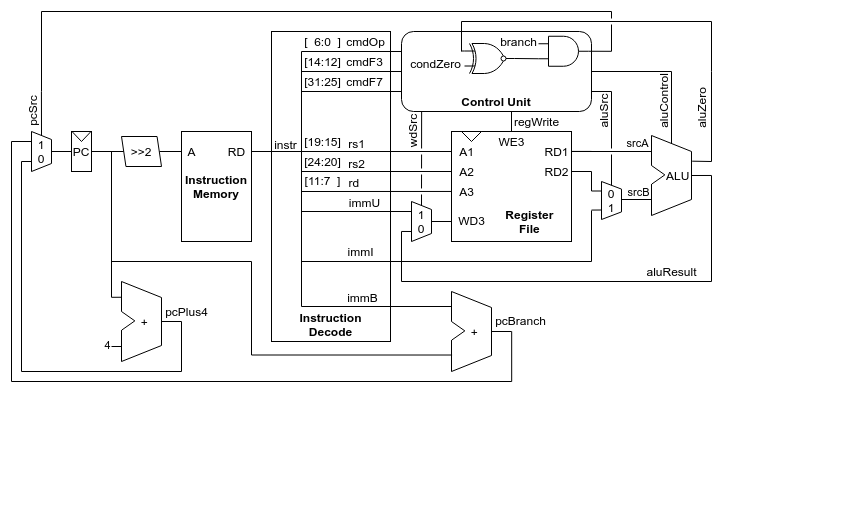

тракт данных Data Path

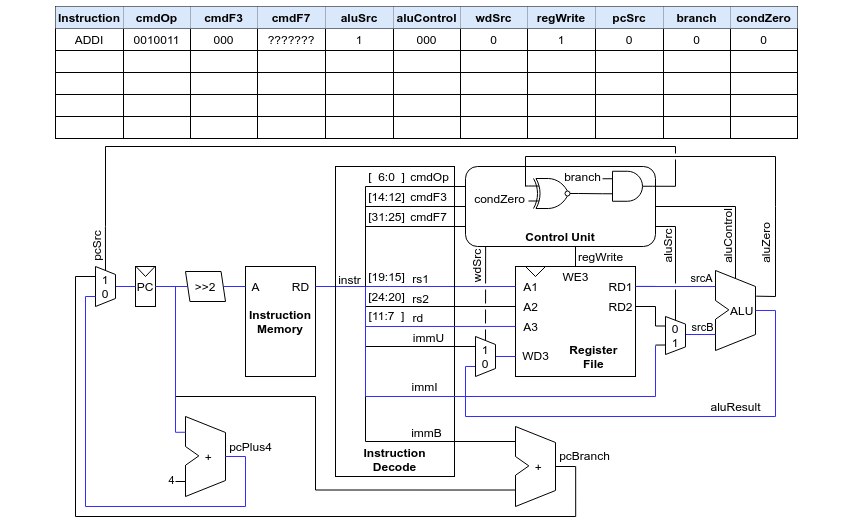

устройство управления Control Unit
...
// sm_register.v module sm_register ( input clk, input rst, input [ 31 : 0 ] d, output reg [ 31 : 0 ] q ); always @ (posedge clk or negedge rst) if(~rst) q <= 32'b0; else q <= d; endmodule

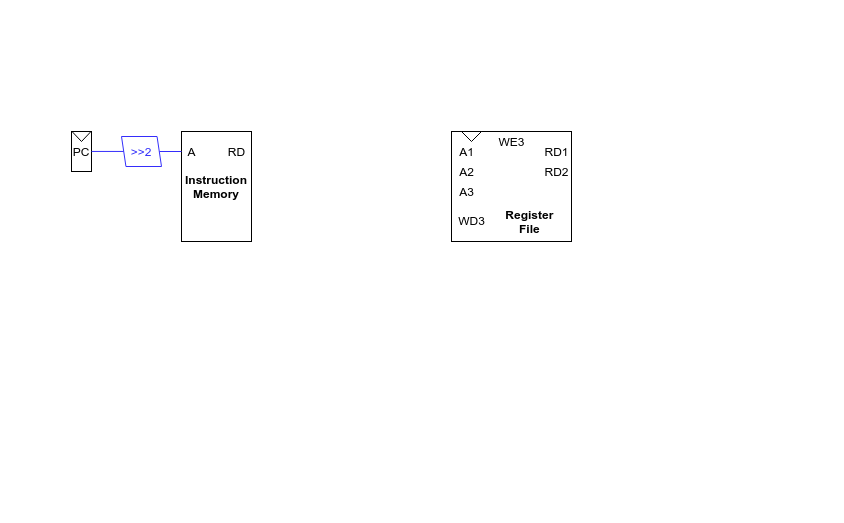

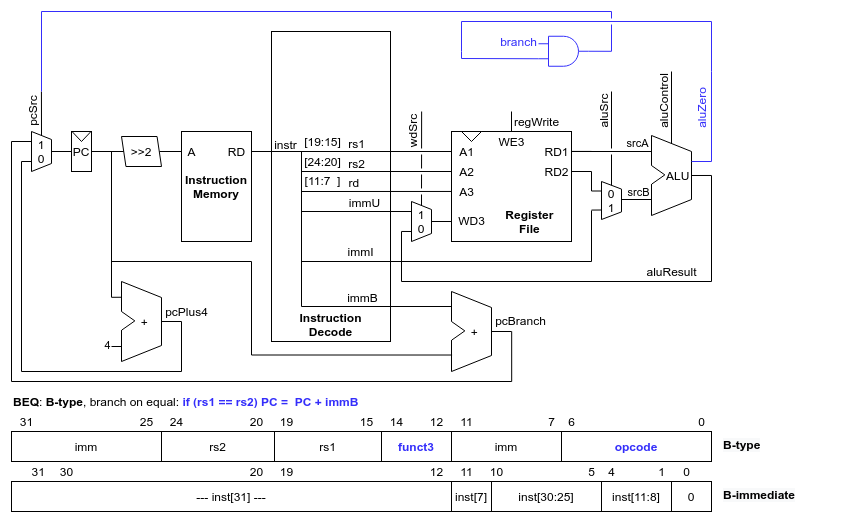

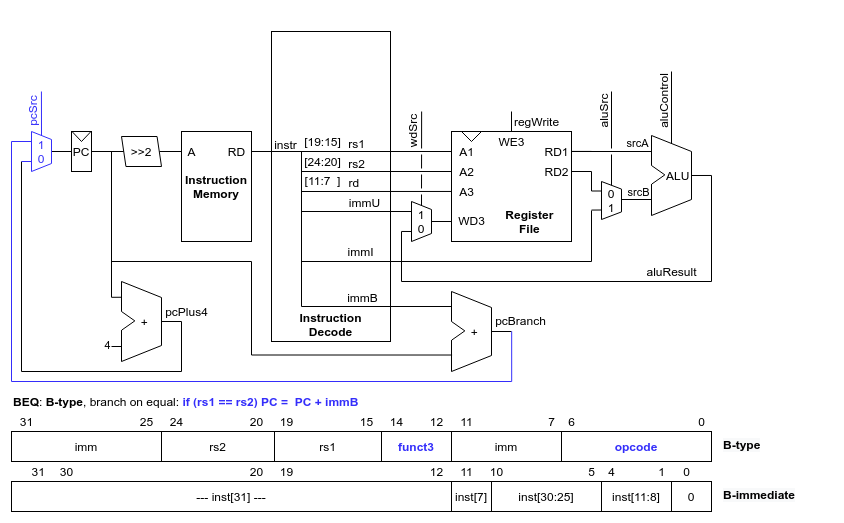

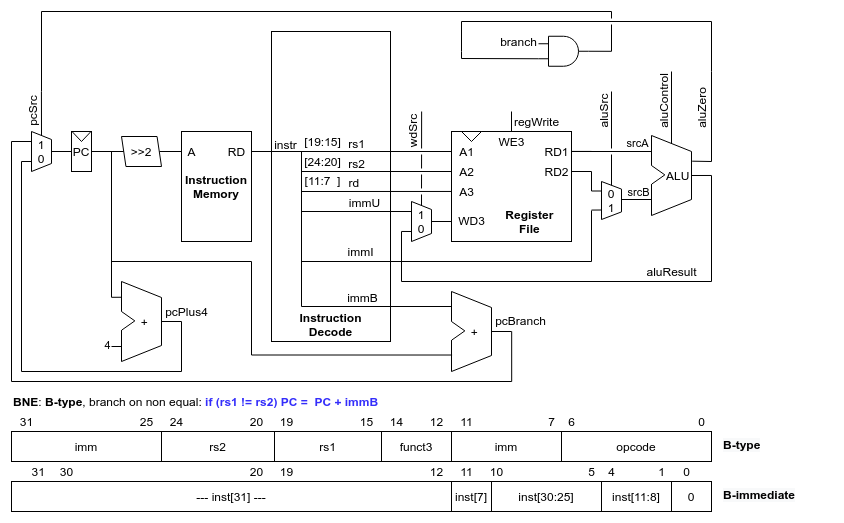

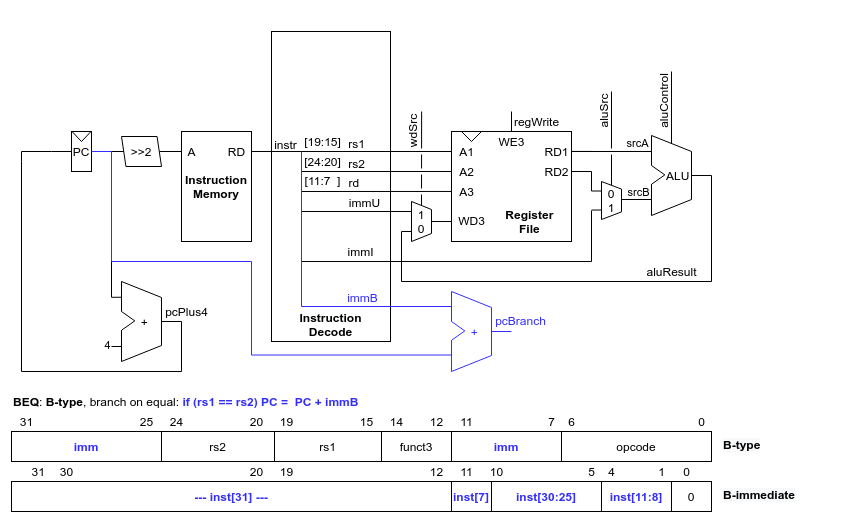

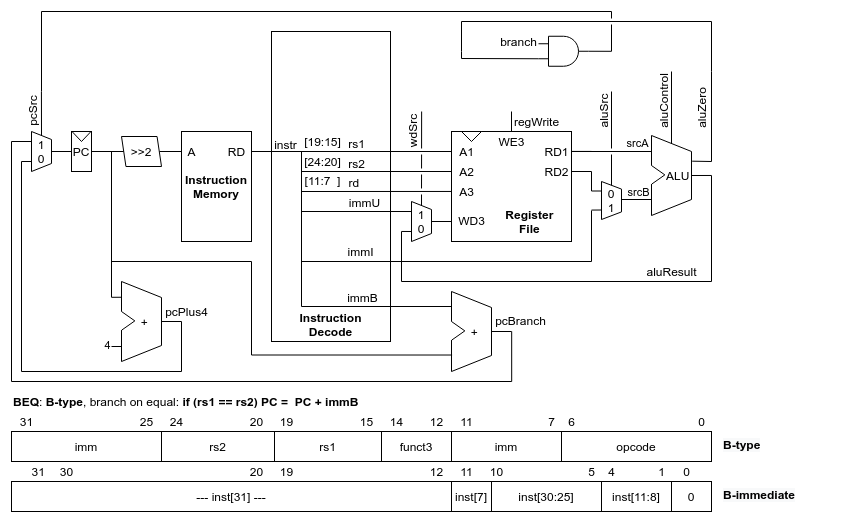

// sr_cpu.v wire [31:0] pc; wire [31:0] pcBranch = pc + immB; wire [31:0] pcPlus4 = pc + 4; wire [31:0] pcNext = pcSrc ? pcBranch : pcPlus4; sm_register r_pc(clk ,rst_n, pcNext, pc);
// sm_rom.v module sm_rom #( parameter SIZE = 64 ) ( input [31:0] a, output [31:0] rd ); reg [31:0] rom [SIZE - 1:0]; assign rd = rom [a]; initial begin $readmemh ("program.hex", rom); end endmodule

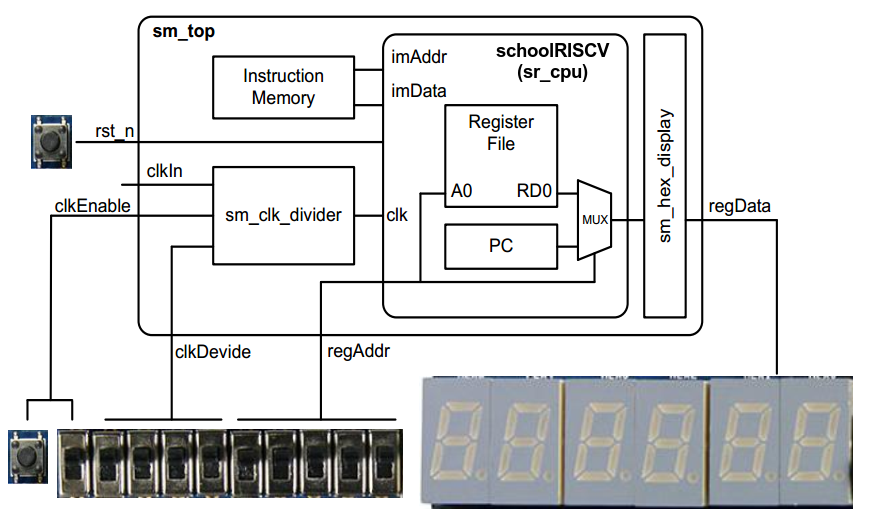

// sm_top.v sm_rom reset_rom(imAddr, imData);

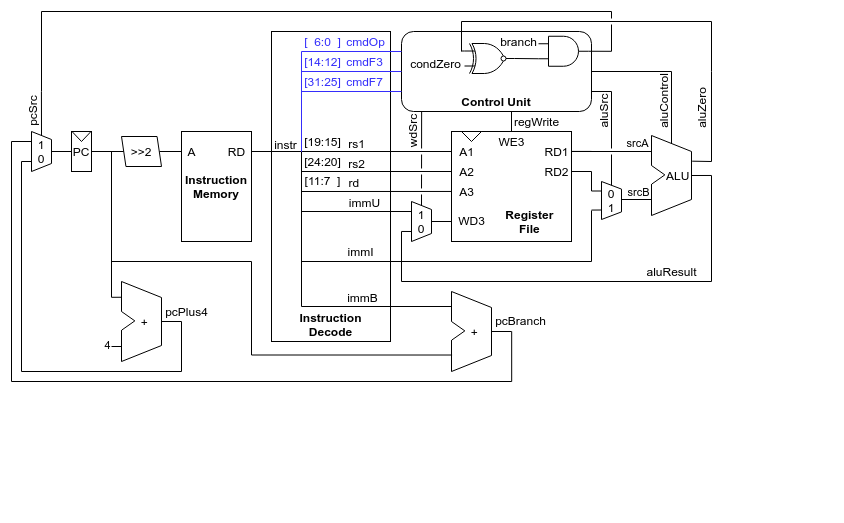

// sr_cpu.v module sr_decode ( input [31:0] instr, output [ 6:0] cmdOp, output [ 4:0] rd, output [ 2:0] cmdF3, output [ 4:0] rs1, output [ 4:0] rs2, output [ 6:0] cmdF7, output reg [31:0] immI, output reg [31:0] immB, output reg [31:0] immU ); assign cmdOp = instr[ 6: 0]; assign rd = instr[11: 7]; assign cmdF3 = instr[14:12]; assign rs1 = instr[19:15]; assign rs2 = instr[24:20]; assign cmdF7 = instr[31:25];

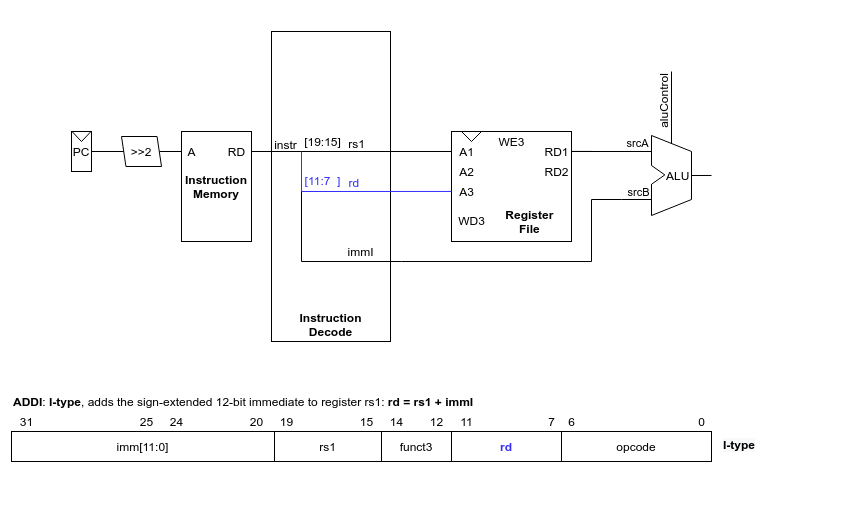

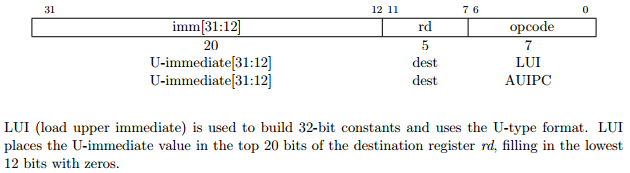

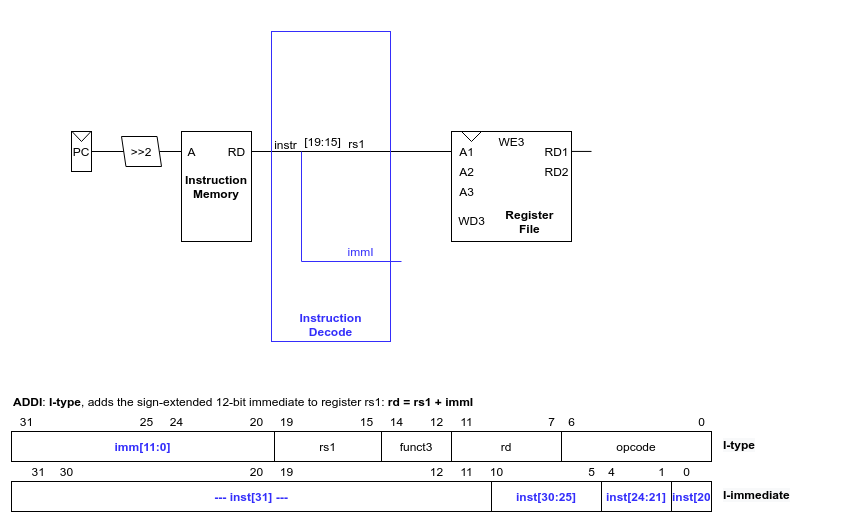

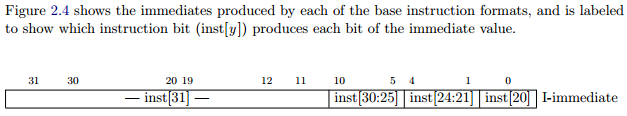

// I-immediate always @ (*) begin immI[10: 0] = instr[30:20]; immI[31:11] = { 21 {instr[31]} }; end // B-immediate always @ (*) begin immB[ 0] = 1'b0; immB[ 4: 1] = instr[11:8]; immB[10: 5] = instr[30:25]; immB[31:11] = { 21 {instr[31]} }; end // U-immediate always @ (*) begin immU[11: 0] = 12'b0; immU[31:12] = instr[31:12]; end endmodule

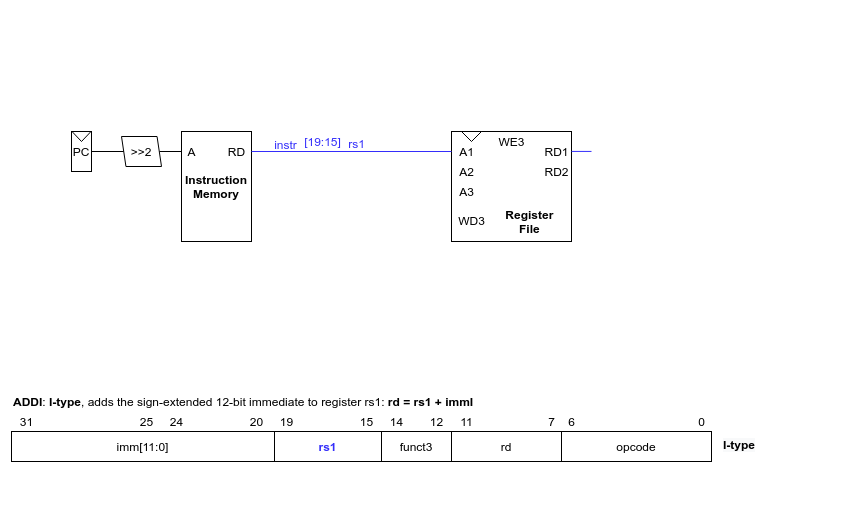

// sr_cpu.v module sm_register_file ( input clk, input [ 4:0] a0, input [ 4:0] a1, input [ 4:0] a2, input [ 4:0] a3, output [31:0] rd0, output [31:0] rd1, output [31:0] rd2, input [31:0] wd3, input we3 ); reg [31:0] rf [31:0]; assign rd0 = (a0 != 0) ? rf [a0] : 32'b0; assign rd1 = (a1 != 0) ? rf [a1] : 32'b0; assign rd2 = (a2 != 0) ? rf [a2] : 32'b0; always @ (posedge clk) if(we3) rf [a3] <= wd3; endmodule
// sr_cpu.vh `define ALU_ADD 3'b000 // A + B `define ALU_OR 3'b001 // A | B `define ALU_SRL 3'b010 // A >> B `define ALU_SLTU 3'b011 // A < B ? 1 : 0 `define ALU_SUB 3'b100 // A - B

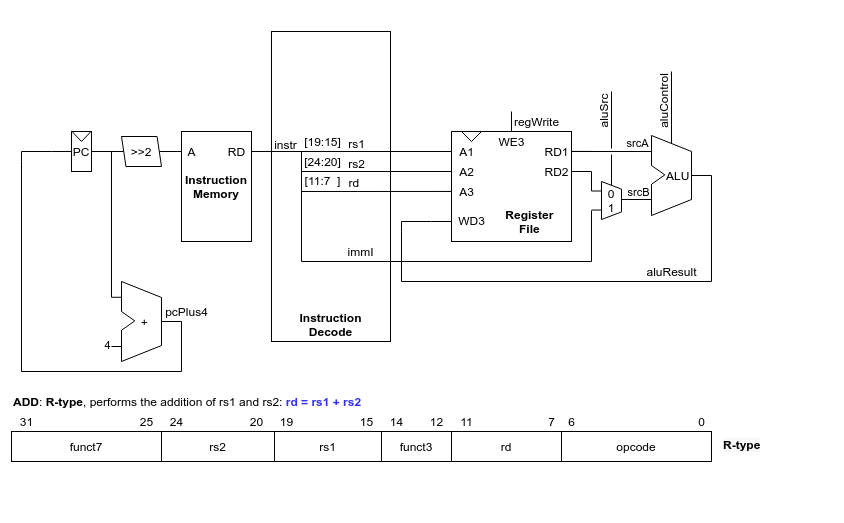

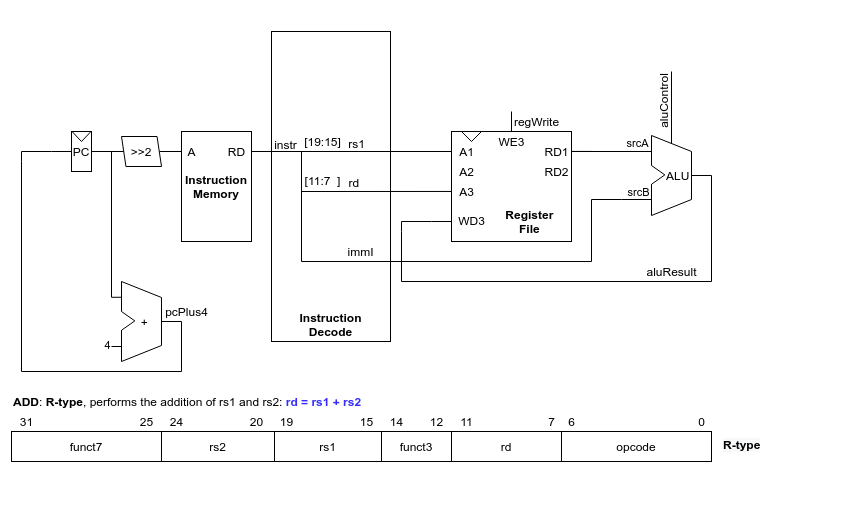

// sr_cpu.v module sr_alu ( input [31:0] srcA, input [31:0] srcB, input [ 2:0] oper, output zero, output reg [31:0] result ); always @ (*) begin case (oper) default : result = srcA + srcB; `ALU_ADD : result = srcA + srcB; `ALU_OR : result = srcA | srcB; `ALU_SRL : result = srcA >> srcB [4:0]; `ALU_SLTU : result = (srcA < srcB) ? 1 : 0; `ALU_SUB : result = srcA - srcB; endcase end assign zero = (result == 0); endmodule

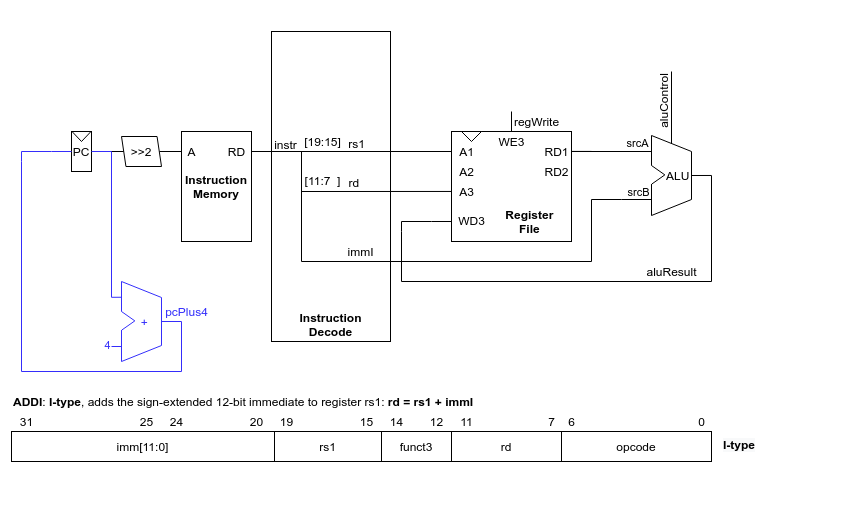

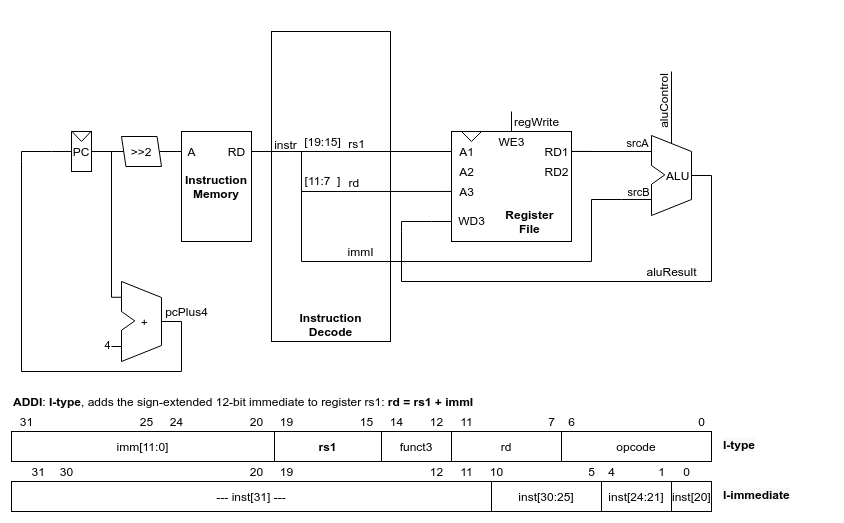

// sr_cpu.v wire [31:0] srcB = aluSrc ? immI : rd2;

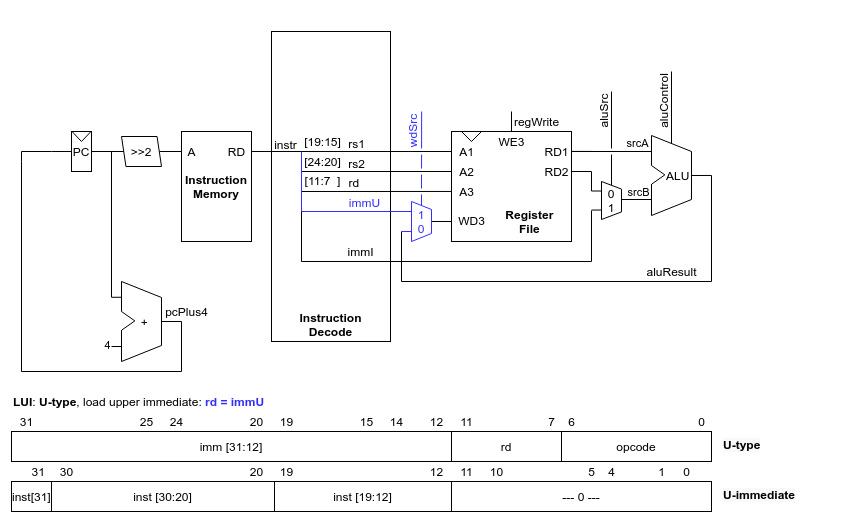

// sr_cpu.v assign wd3 = wdSrc ? immU : aluResult;

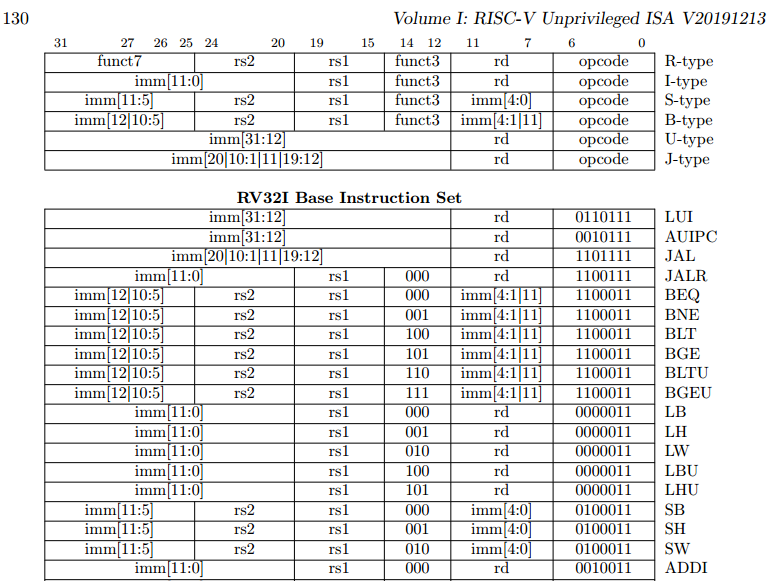

// sr_cpu.vh // instruction opcode `define RVOP_ADDI 7'b0010011 `define RVOP_BEQ 7'b1100011 ... // instruction funct3 `define RVF3_ADDI 3'b000 `define RVF3_BEQ 3'b000 `define RVF3_BNE 3'b001 `define RVF3_ADD 3'b000 ... `define RVF3_ANY 3'b??? // instruction funct7 `define RVF7_ADD 7'b0000000 ... `define RVF7_ANY 7'b???????

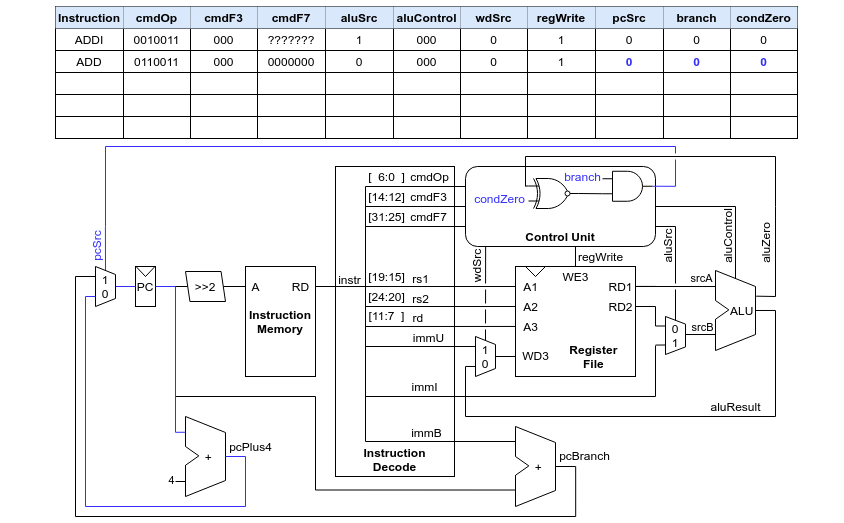

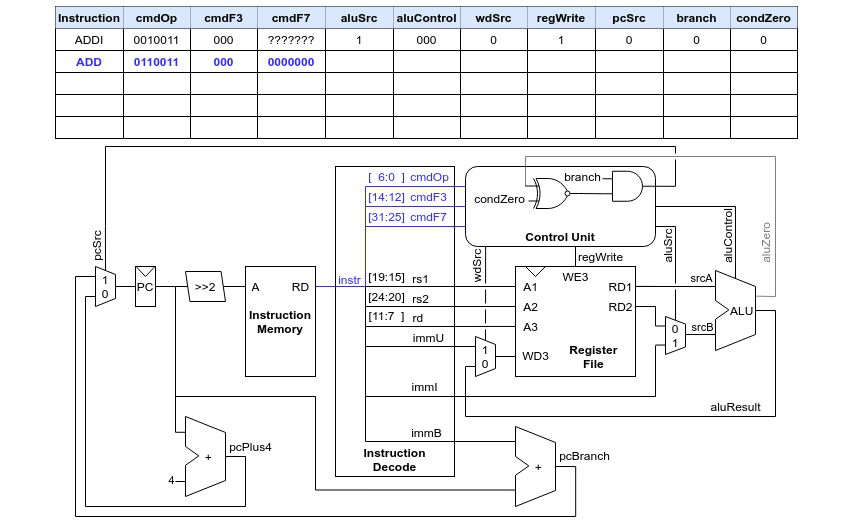

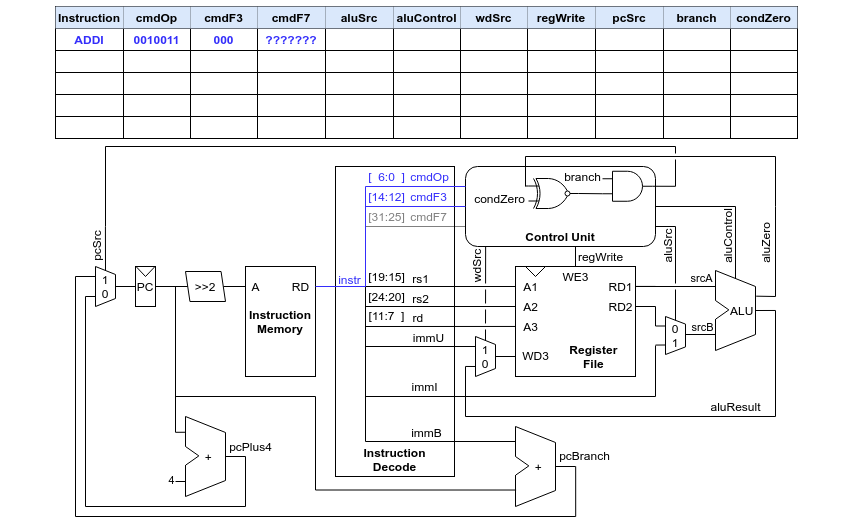

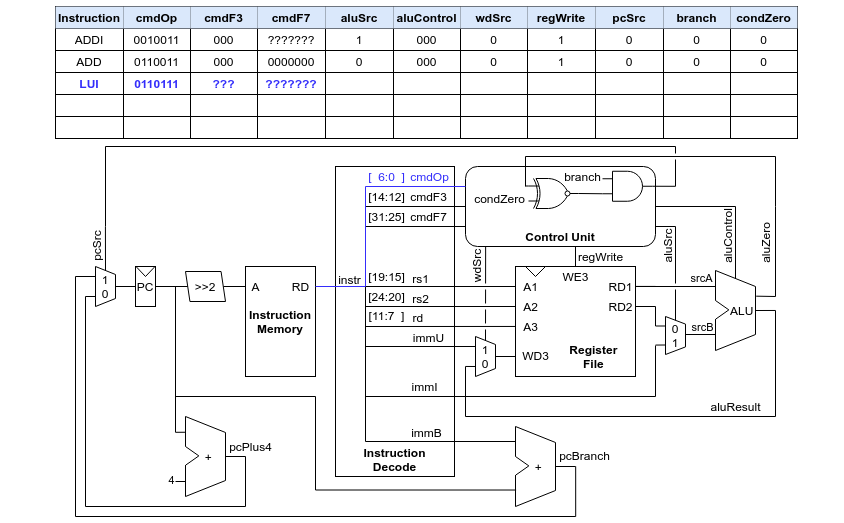

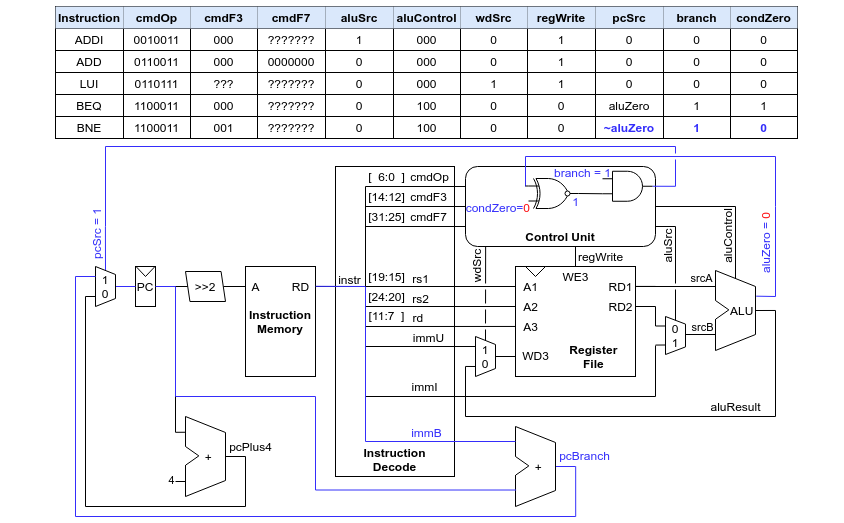

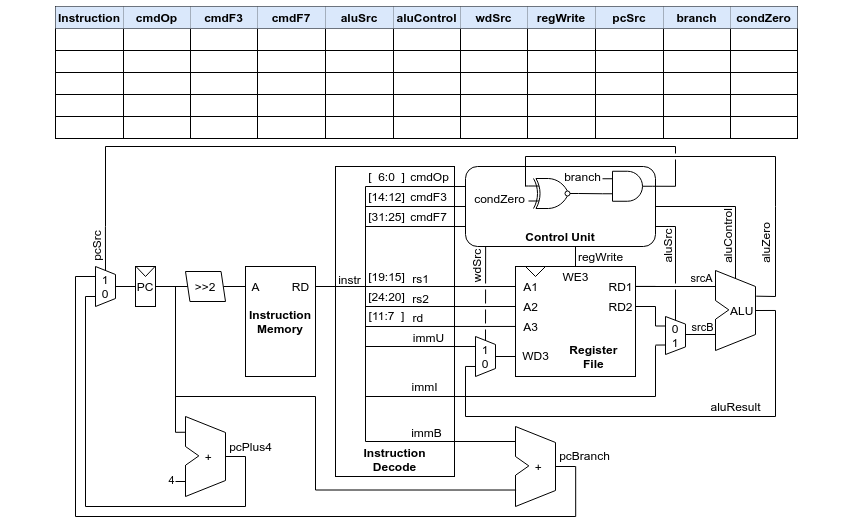

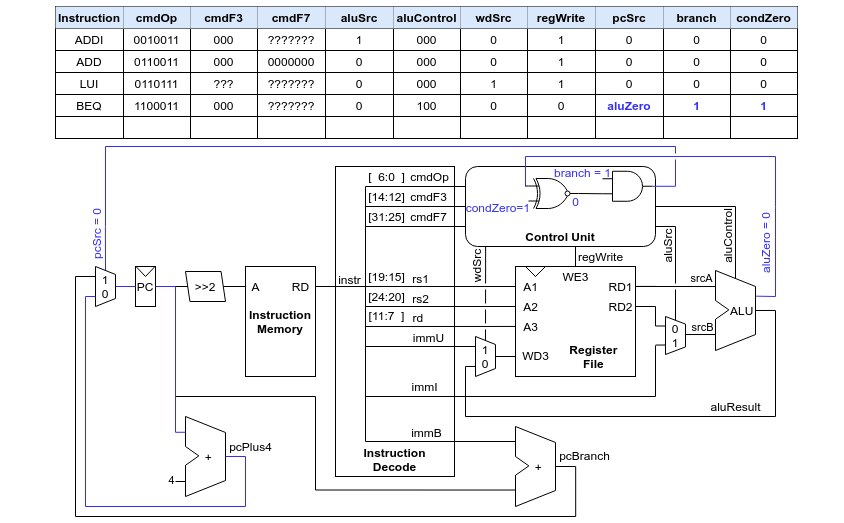

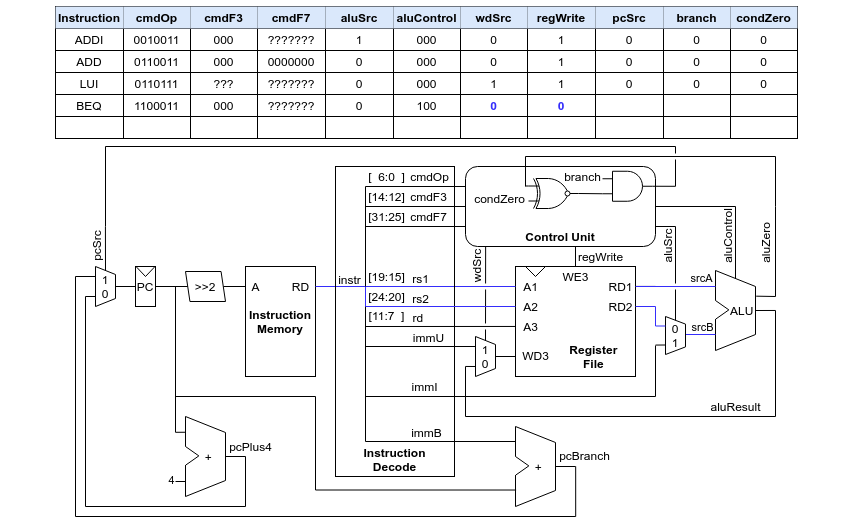

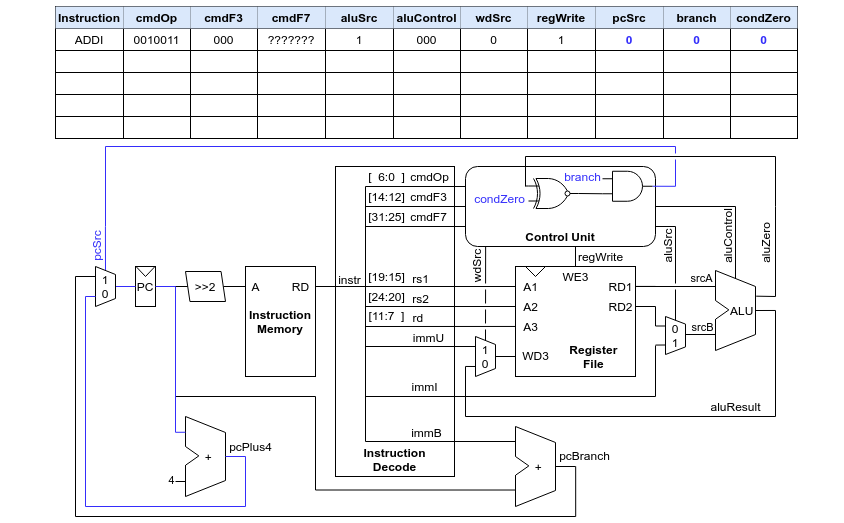

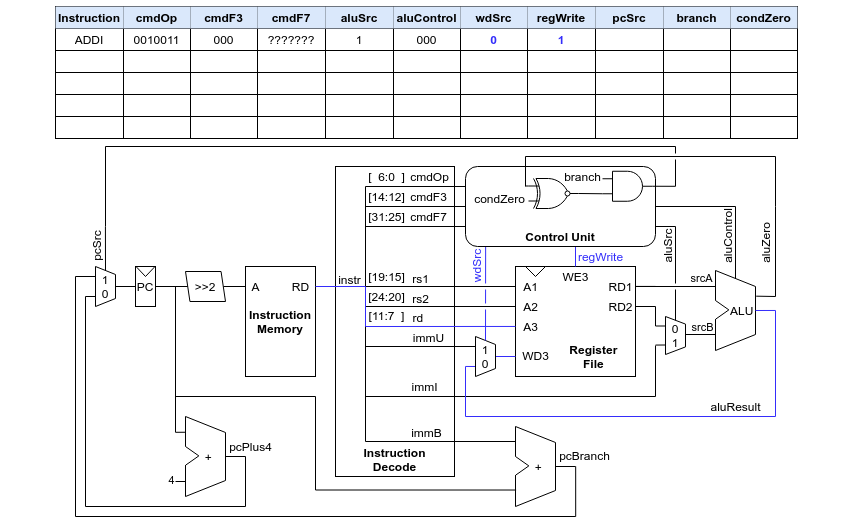

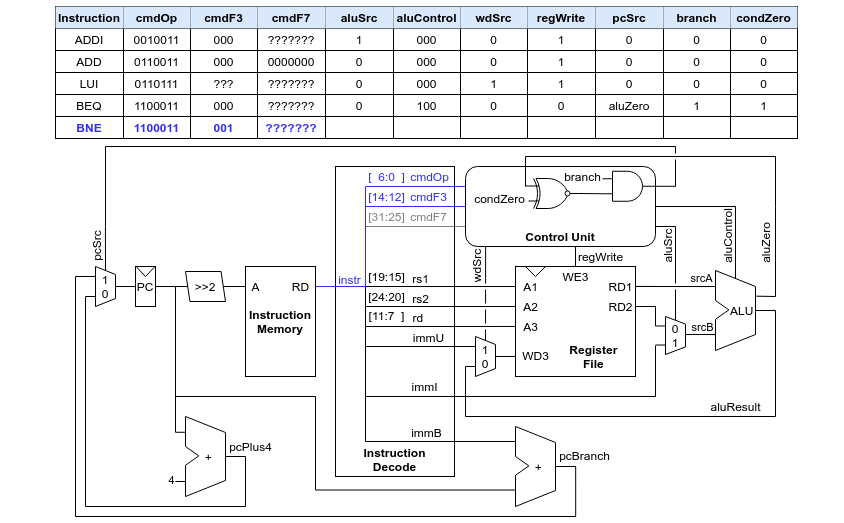

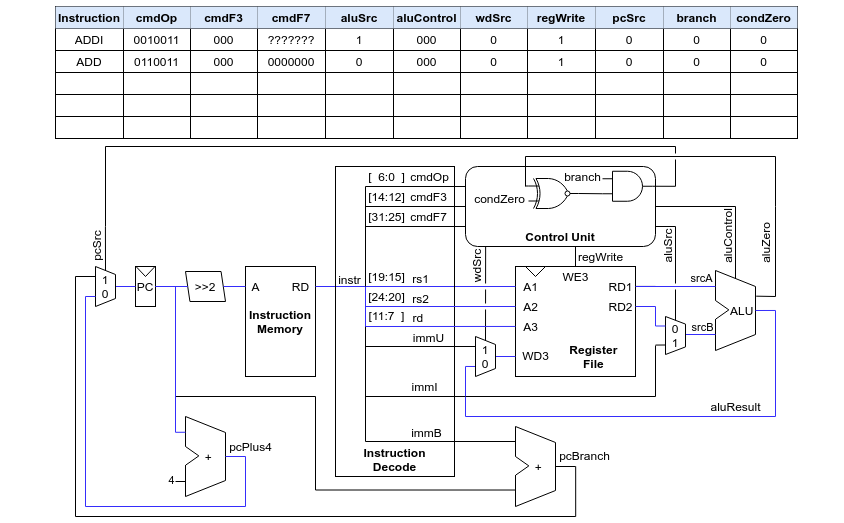

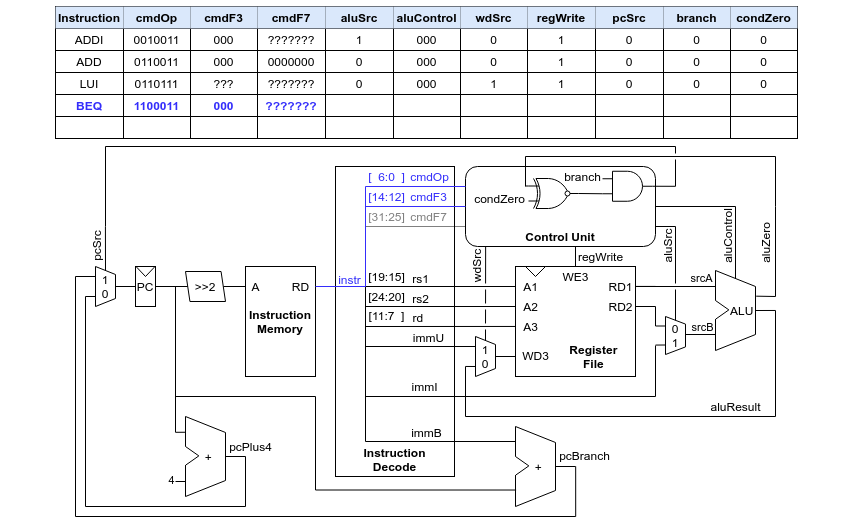

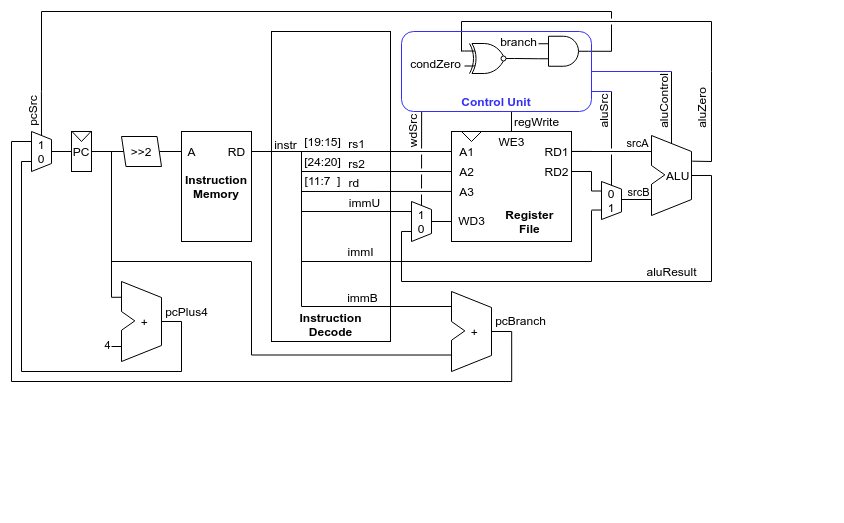

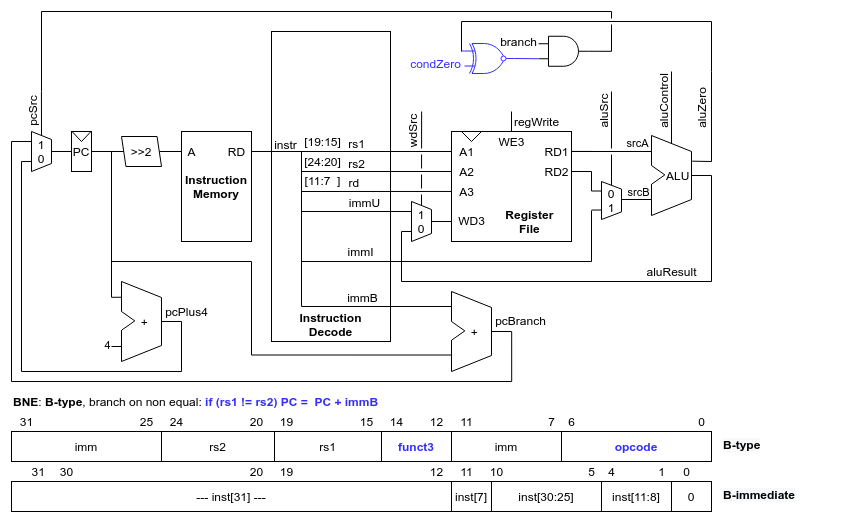

// sr_cpu.v module sr_control ( input [ 6:0] cmdOp, input [ 2:0] cmdF3, input [ 6:0] cmdF7, input aluZero, output pcSrc, output reg regWrite, output reg aluSrc, output reg wdSrc, output reg [2:0] aluControl ); reg branch; reg condZero; assign pcSrc = branch & (aluZero == condZero);

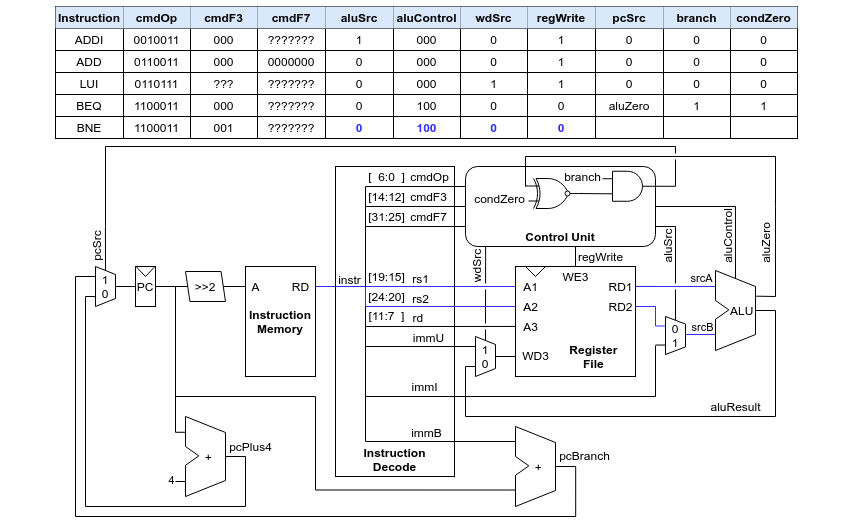

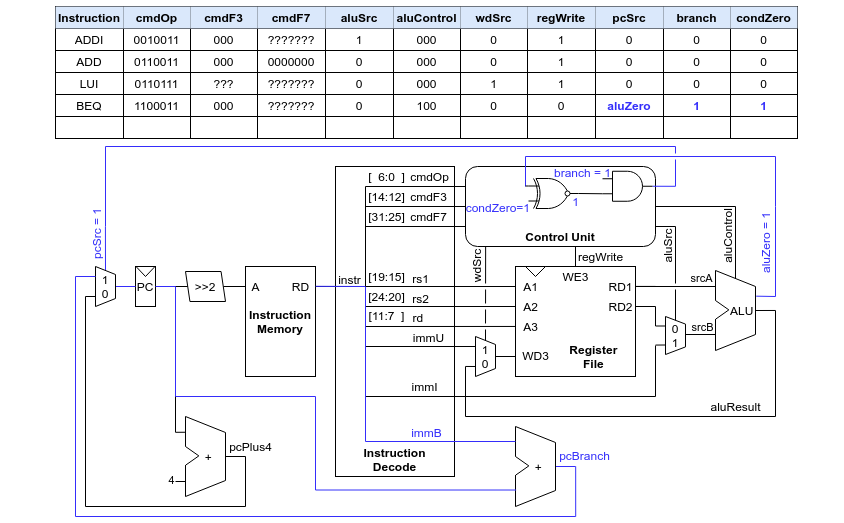

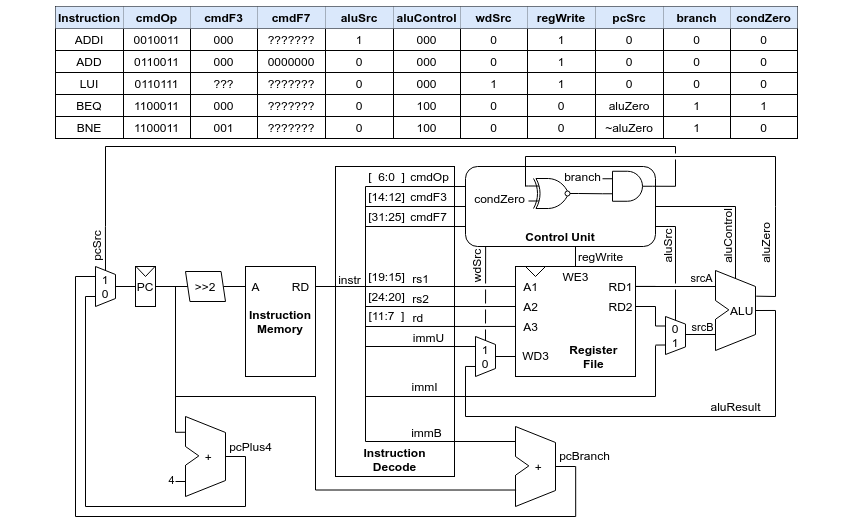

// sr_cpu.v always @ (*) begin branch = 1'b0; condZero = 1'b0; regWrite = 1'b0; aluSrc = 1'b0; wdSrc = 1'b0; aluControl = `ALU_ADD; casez( {cmdF7, cmdF3, cmdOp} ) { `RVF7_ADD, `RVF3_ADD, `RVOP_ADD } : begin regWrite = 1'b1; aluControl = `ALU_ADD; end { `RVF7_OR, `RVF3_OR, `RVOP_OR } : begin regWrite = 1'b1; aluControl = `ALU_OR; end { `RVF7_SRL, `RVF3_SRL, `RVOP_SRL } : begin regWrite = 1'b1; aluControl = `ALU_SRL; end { `RVF7_SLTU, `RVF3_SLTU, `RVOP_SLTU } : begin regWrite = 1'b1; aluControl = `ALU_SLTU; end { `RVF7_SUB, `RVF3_SUB, `RVOP_SUB } : begin regWrite = 1'b1; aluControl = `ALU_SUB; end { `RVF7_ANY, `RVF3_ADDI, `RVOP_ADDI } : begin regWrite = 1'b1; aluSrc = 1'b1; aluControl = `ALU_ADD; end { `RVF7_ANY, `RVF3_ANY, `RVOP_LUI } : begin regWrite = 1'b1; wdSrc = 1'b1; end { `RVF7_ANY, `RVF3_BEQ, `RVOP_BEQ } : begin branch = 1'b1; condZero = 1'b1; aluControl = `ALU_SUB; end { `RVF7_ANY, `RVF3_BNE, `RVOP_BNE } : begin branch = 1'b1; aluControl = `ALU_SUB; end endcase end
Цифровая схемотехника и архитектура компьютера David Harris & Sarah Harris ДМК Пресс
Цифровой синтез: практический курс Александр Романов & Юрий Панчул ДМК Пресс
Syntacore SCR1 https://github.com/syntacore/scr1
